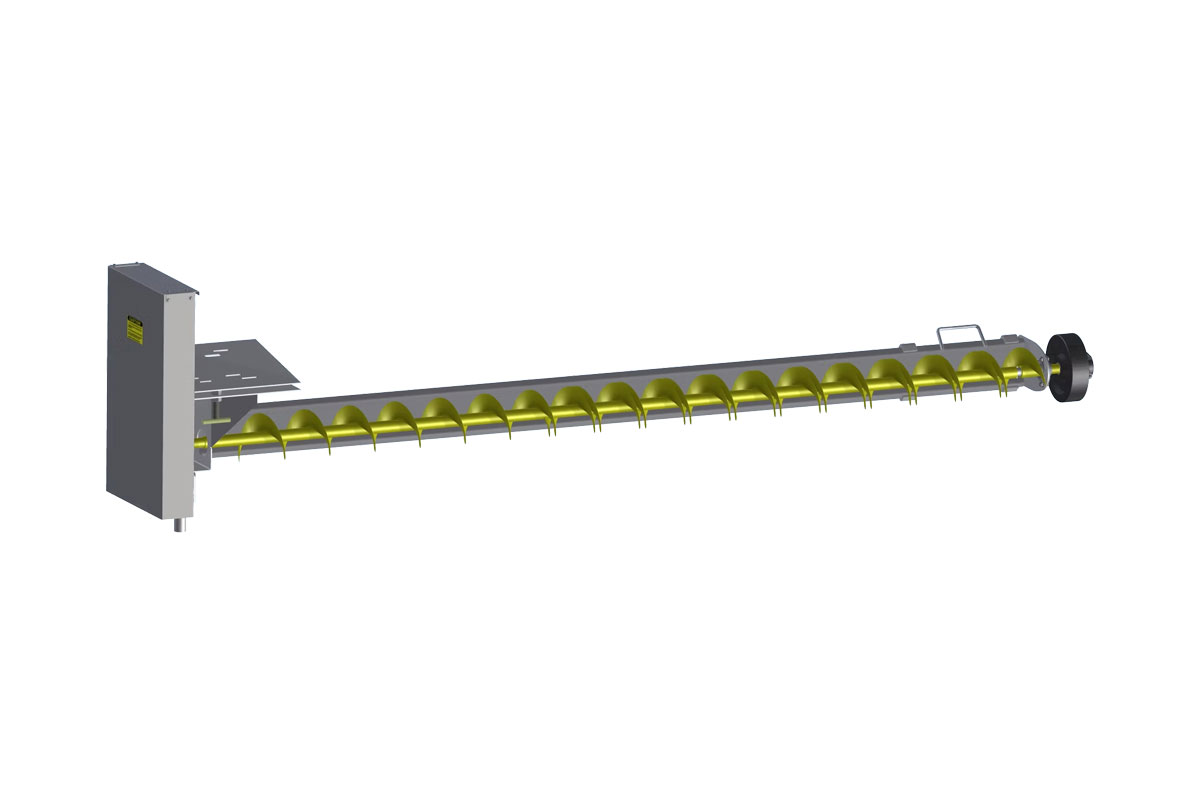

standard bin sweep 1 - Haven Industries

Bin sweeps, or “carry-in sweeps” have a light weight portable design to use in multiple-sized bins. Special sweeps are available in any lengths, up to 10″ in diameter.

  • Hanger bearings are installed every 6-10′
  • For slower rotation speeds, we offer a multi-ply rubber reduction wheel
  • Choose between an electric or hydraulic configuation
  • Poly-flighting sweeps are available

Features

standard bin sweep feature 1 - Haven Industries

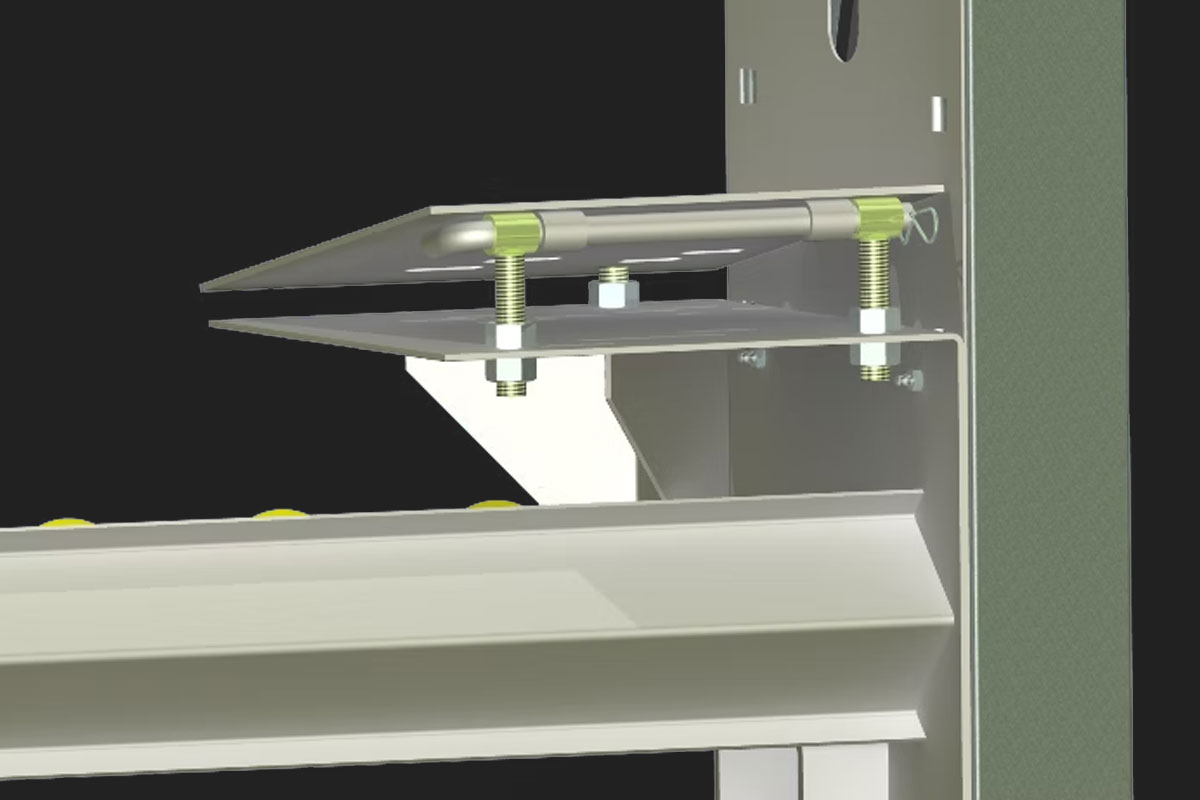

The fully-threaded motor mount adjusts easily for quick setup.

standard bin sweep feature 2 - Haven Industries

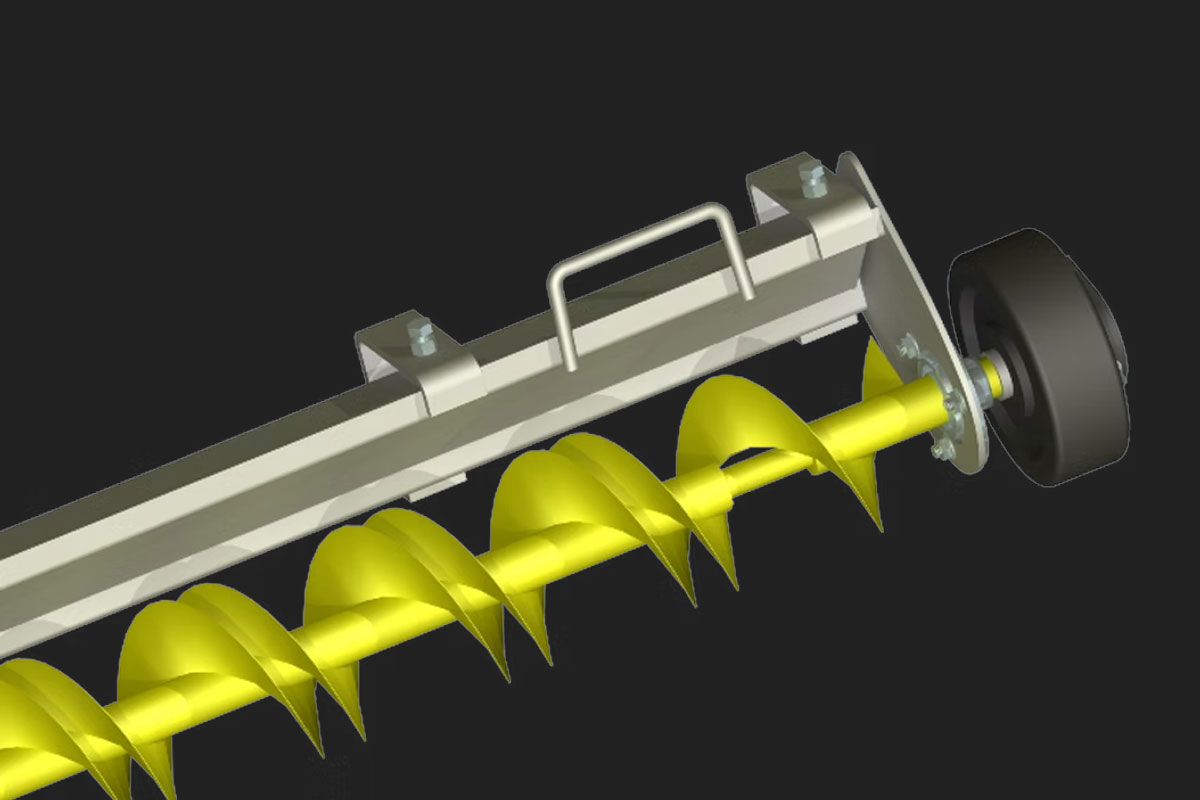

Sweeps (up to 36') can be adjusted for 3 bin sizes. Flighting and sweep back "telescope" to the desired length.

standard bin sweep feature 3 - Haven Industries

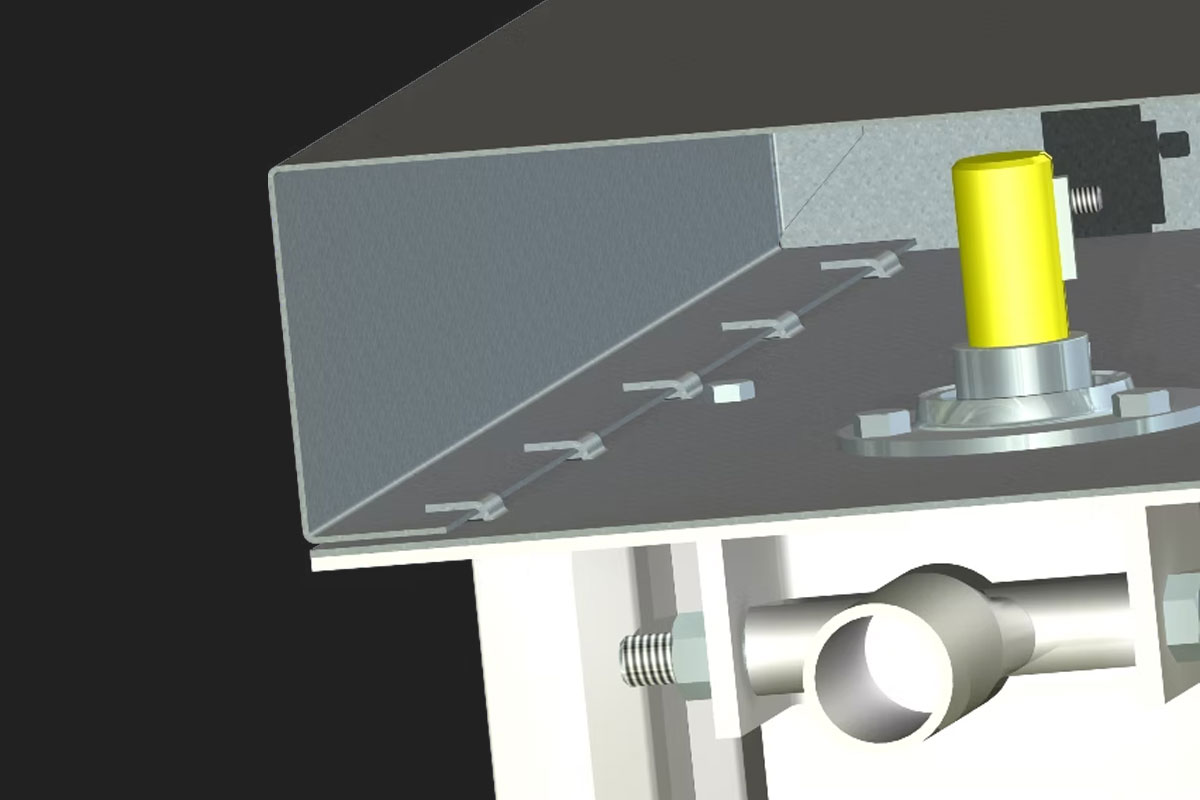

A slide-on belt guard allows for easy access to the belt and pulley for maintenance operations.

Specifications

Bin Diameter 5″ Part # 5″ WT 7″ Part # 7″ WT
18′-21′ 502-22-1100 86 702-22-1100 91
21′-27′ 502-27-1100 109 702-27-1100 110
30′-36′ 502-36-1100 149 702-36-1100 155
42′ 502-42-1100 169 702-42-1100 178
48′ 502-48-1100 199 702-48-1100 202

Resources

  • Grain Saver Product Catalog

    24 Pages

  • Standard Bin Sweeps Manual

    4 Pages

  • Standard Unloads & Bin Sweeps Brochure

    2 Pages

Related Products

featured standard 3 hopper unload tubes - Haven Industries

Standard Unloads

Unload tubes feature a fully assembled/welded construction.

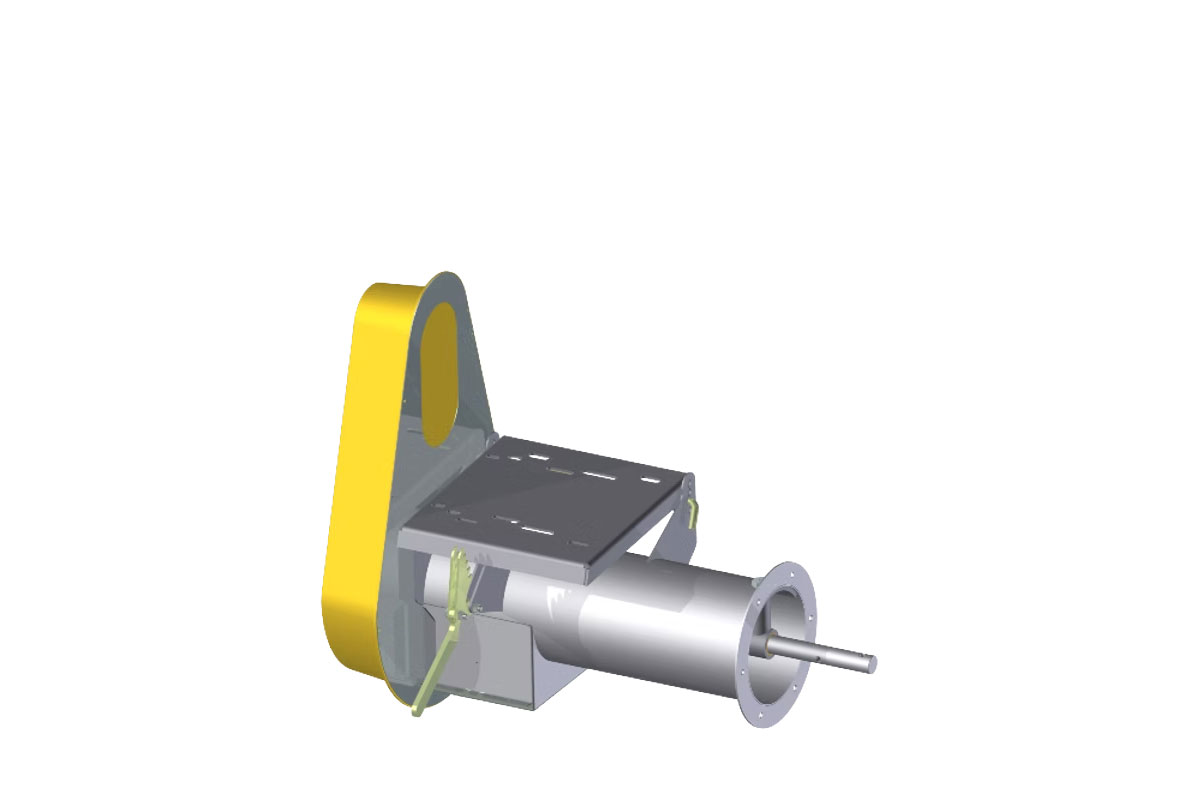

featured standard powerhead drive - Haven Industries
