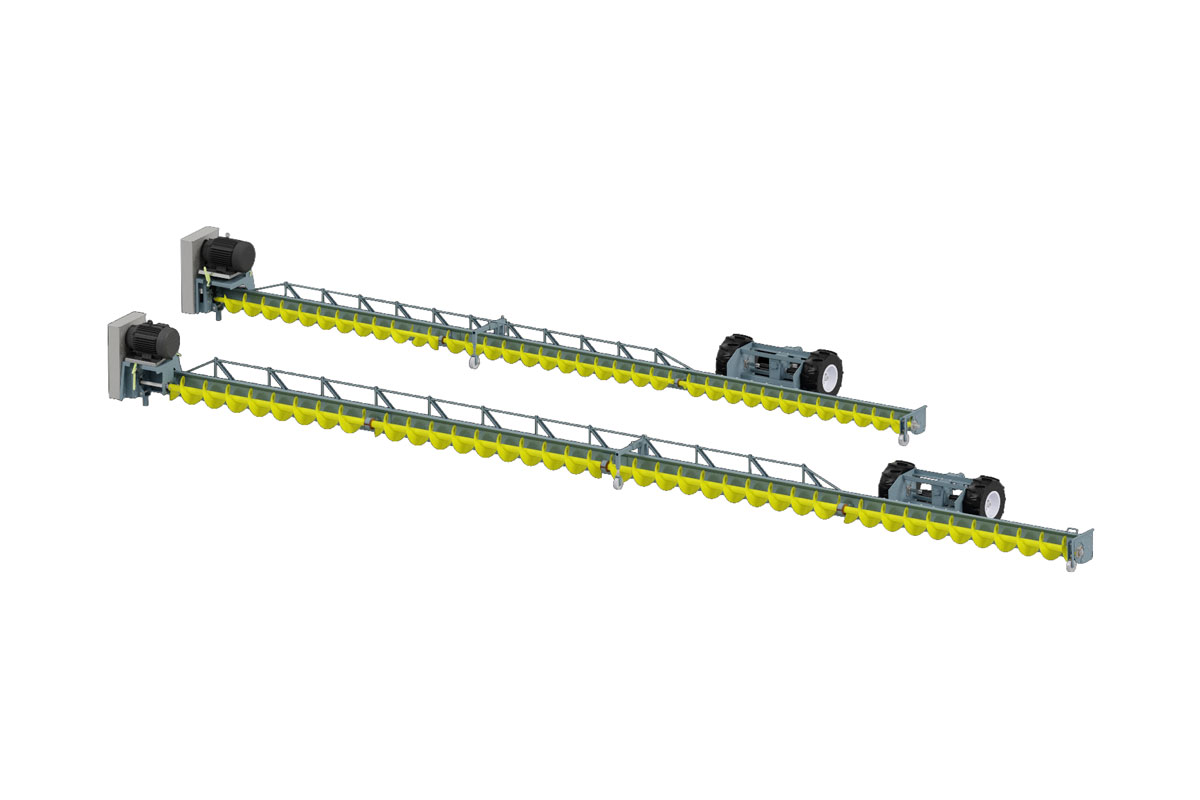

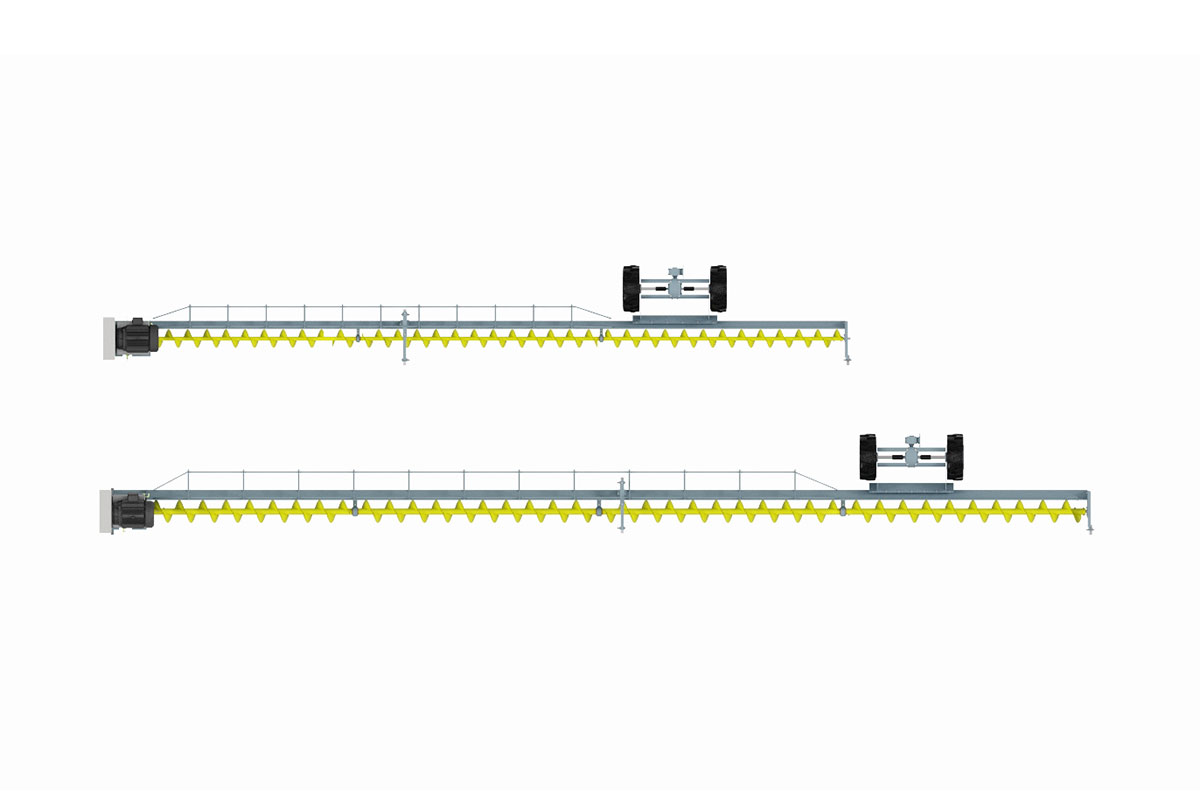

10″ & 12″ Models

3.73:1 Oil Bath Gear Reducer with 7.75” OD driven sheave, allowing the sweep to be positioned closer to the floor. 4”-4.5” motor pulley recomended (not included)

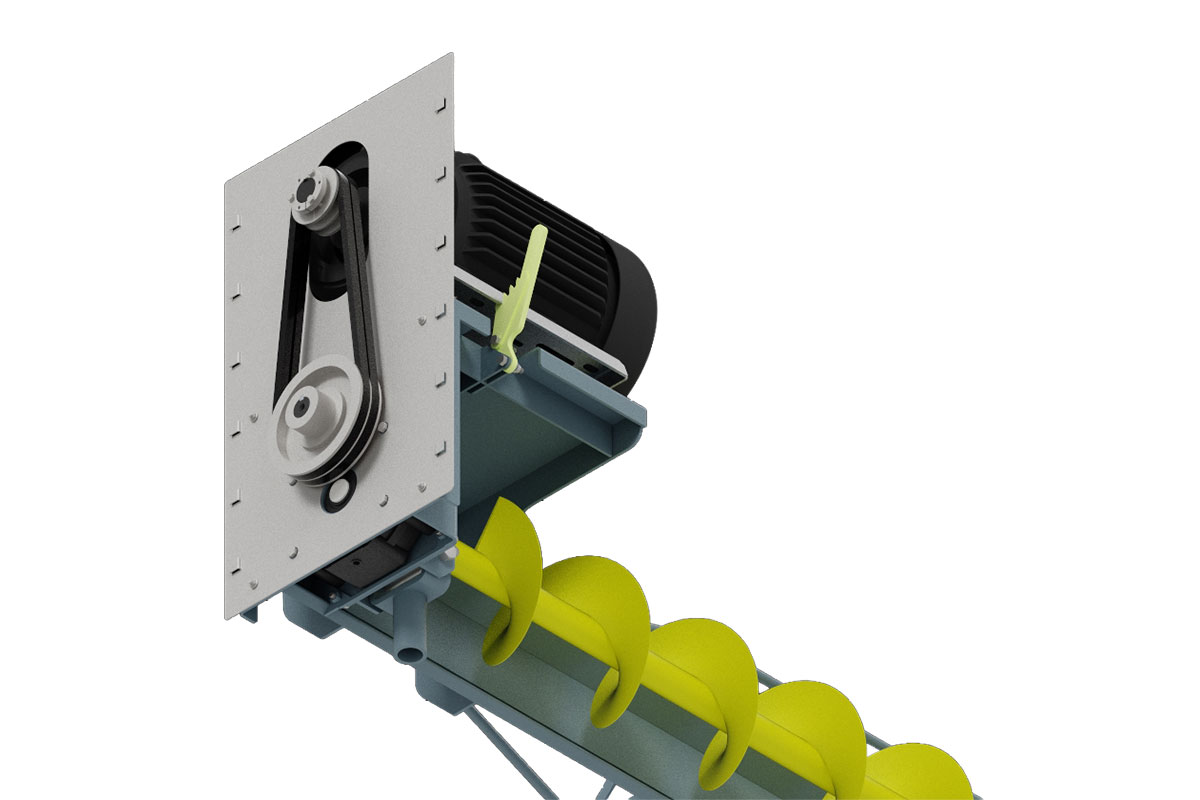

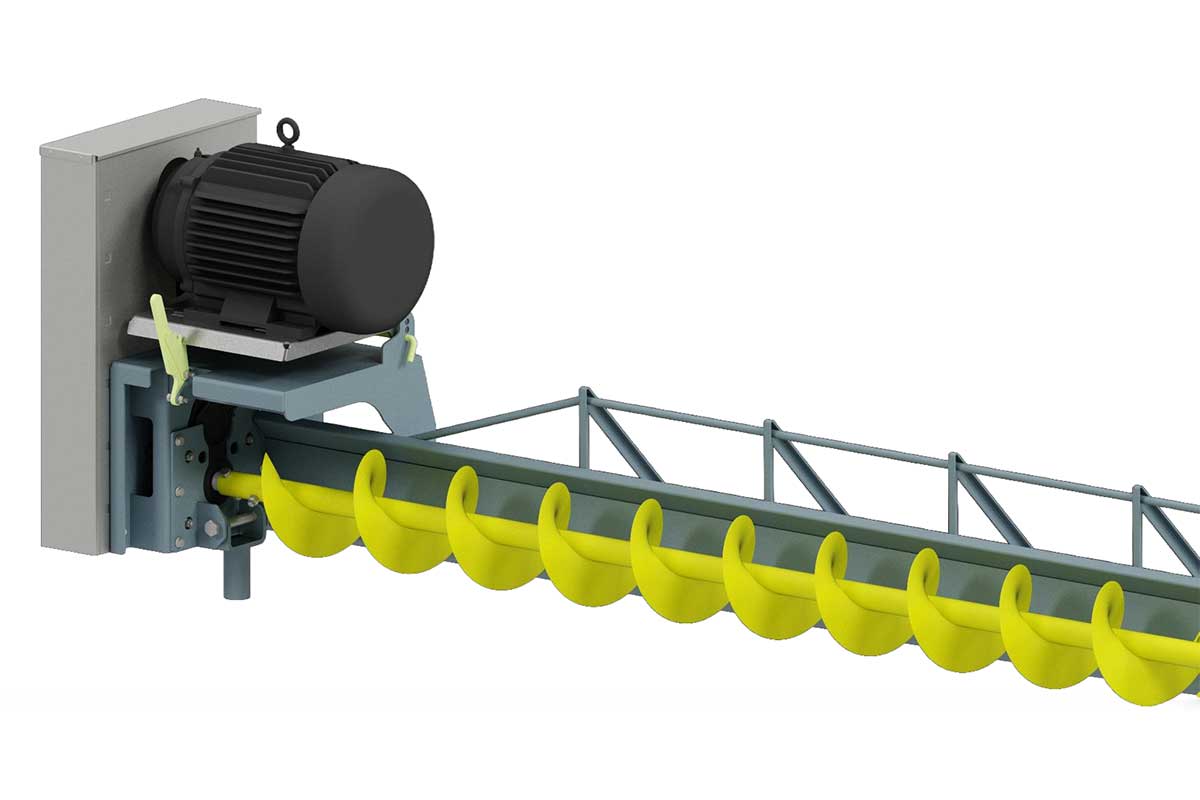

Heavy duty motor mount with over center belt tensioner, belt guard, belts.
HD 10 ga. formed and welded sweep backboard with 8 ga. internal truss.
External backboard truss with 5/8 rod in sweeps 42’ and up.
Carrier wheel included on 68’-90’ bins.
10” sweeps have 1/4” flight mounted on 2” OD tube. 12” sweeps have 1/4” flight mounted on 2-7/8” OD tube.
Hanger bearings on sweep every 10 ft.

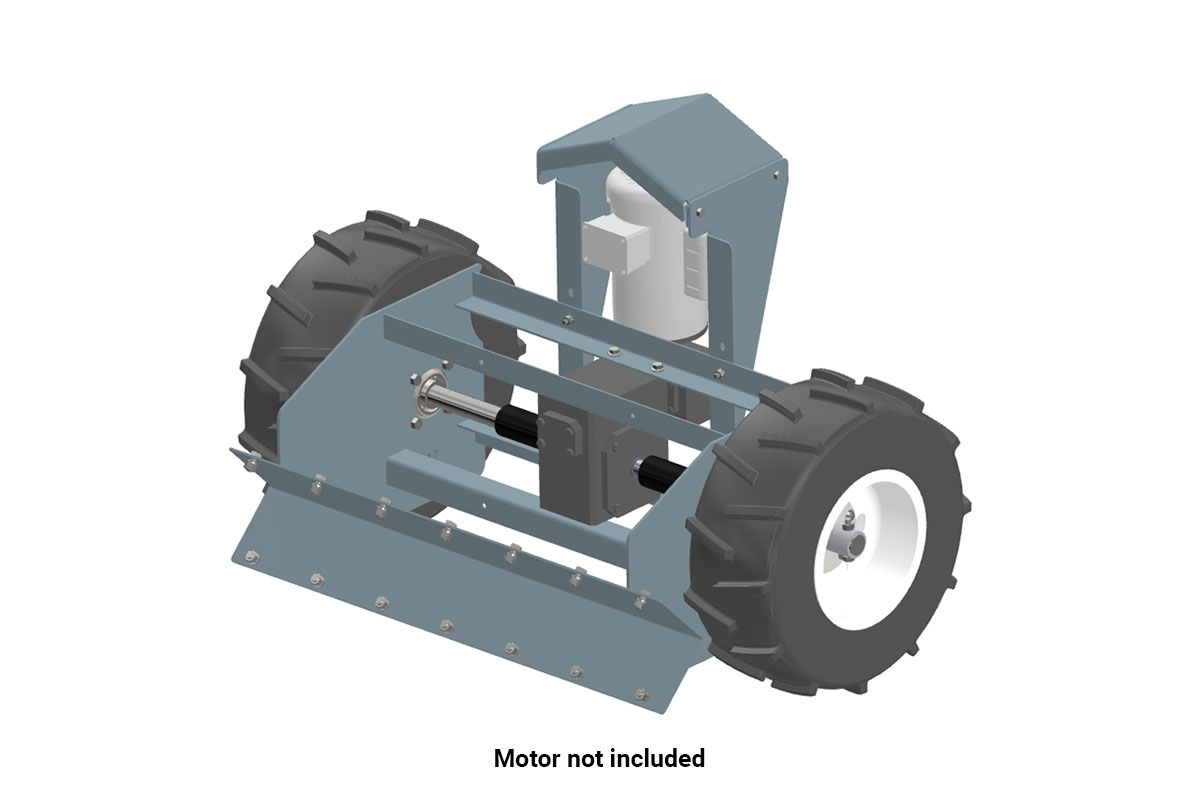

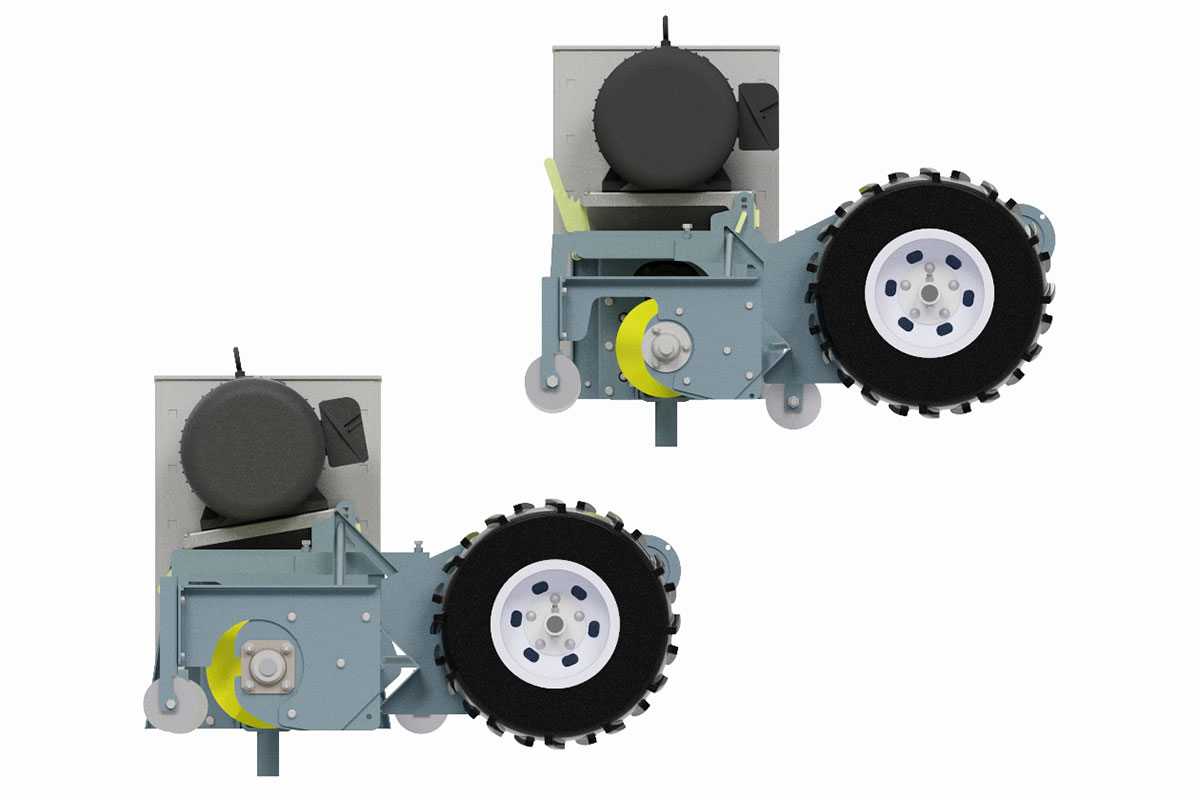

All sweeps will require a selection of either a tractor drive or a 10:1 Reduction Wheel. Tractors recomended for all 12” sweeps and sweeps 68’ and up.

Specifications

Bin Diameter	10″ Part#	10″ WT	10″ HP	12″ Part#	12″ WT	12″ HP
24′	102-24-1100	600	3	–	–	–
27′	102-27-1100	615	3	–	–	–
30′	102-30-1100	635	3	–	–	–
33′	102-33-1100	655	3	–	–	–
36′	102-36-1100	675	3	112-36-1100	858	7.5
42′	102-42-1100	715	5	112-42-1100	910	10
48′	102-48-1100	844	5	112-48-1100	1000	10
54′	102-54-1100	885	5	112-54-1100	1050	15
60′	102-60-1100	1200	7.5	112-60-1100	1150	15
68′	102-68-1100	1300	7.5	112-68-1100	1200	15
72′	102-72-1100	1325	7.5	112-72-1100	1275	15
78′	102-78-1100	1365	10	112-78-1100	1375	15
90′	102-90-1100	1650	10	112-90-1100	1650	20
